Product Details
＋

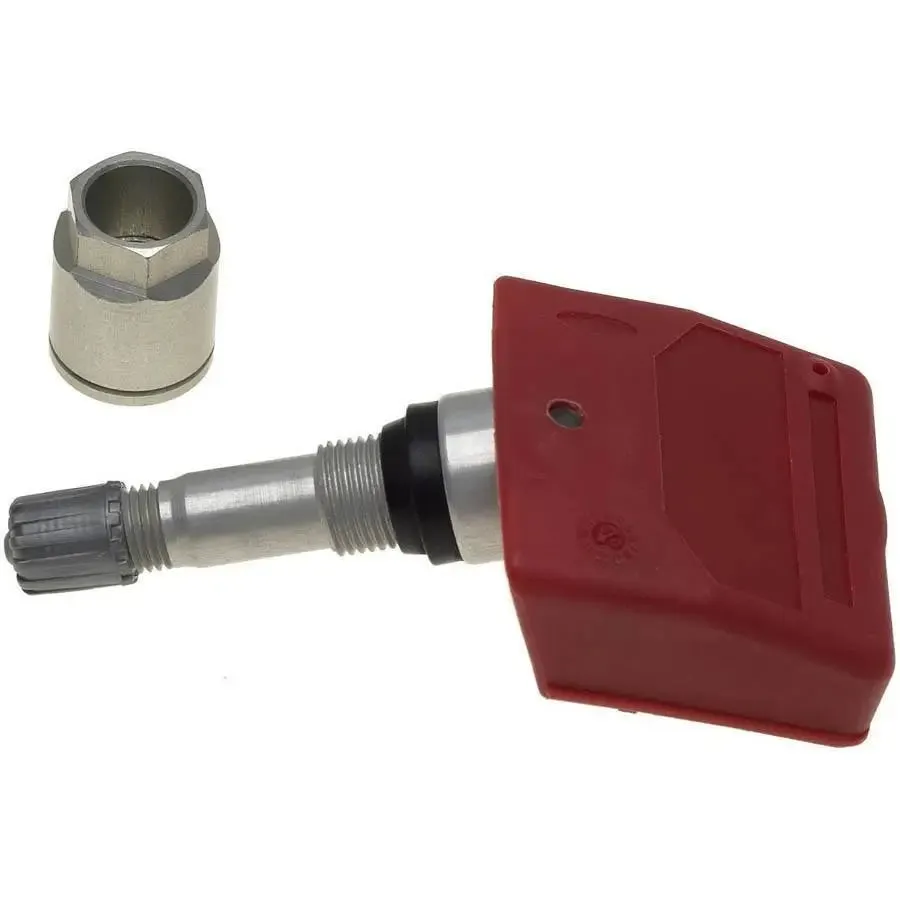

Schrader TPMS Replacement Valves meet OE quality and performance specifications. Scharder TPMS sensors measure tire pressure and temperature. Scharder offers a growing range of replacement sensors that are designed for specific vehicle makes, models and y. Transmitters are make and model specific, consult the application guide to determine the proper replacement. Replacement transmitters and valves must be torqued with a specific torque wrench. Please refer to the application guide to determine the specific torque value.
Specifications
- Part Source: Schrader International
- Frequency: 433 MHz
- Torque Nut: 5Nm-44in-lbs
- Torque Screw: 5Nm-44in-lbs
- Torque Core: 0.5Nm-4in-lbs
- FCC ID: MRXFG2R4MA
- Housing Color: Red
- Sensor Type: Clamp-In
- Part Design: 1 Piece
- Valve Material: Metal
- Shape: 1 - Schrader Square
- IC Number: 2546A-FG2R4MA
- Manufactured By: Schrader Electronics
- Sensor ID Length: 8 Digits
- Sensor ID Type: Decimal
Application:
- FORD
Expedition 2004-2003
Explorer 2005-2004 and 2003-2002 Exc. Sport - LINCOLN
Aviator 2005-2003
Navigator 2004-2003 - MERCURY
Mountaineer 2005-2002
