Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | XS-395-RS |
| Connection Type | Wire Leads |
| Insulation Color | Green/White |
| Insulation Material | Flexible Mineral |
| Jacket Color | Green |
| Jacket Material | 310 Stainless Steel |
| Length, Wire | 3.94 in (100mm) |
| Maximum Operating Temperature | 2012 F (1100 C) |
| Minimum Operating Temperature | -40 F (-40 C) |
| Shop By | Factory Choice |
| Thermocouple Type | Type K |
| UPC Code | 5056111963203 |
| Warranty | 3 Year Warranty |
| Wire Size | 7/0.2 (0.219mm2) |
Overview

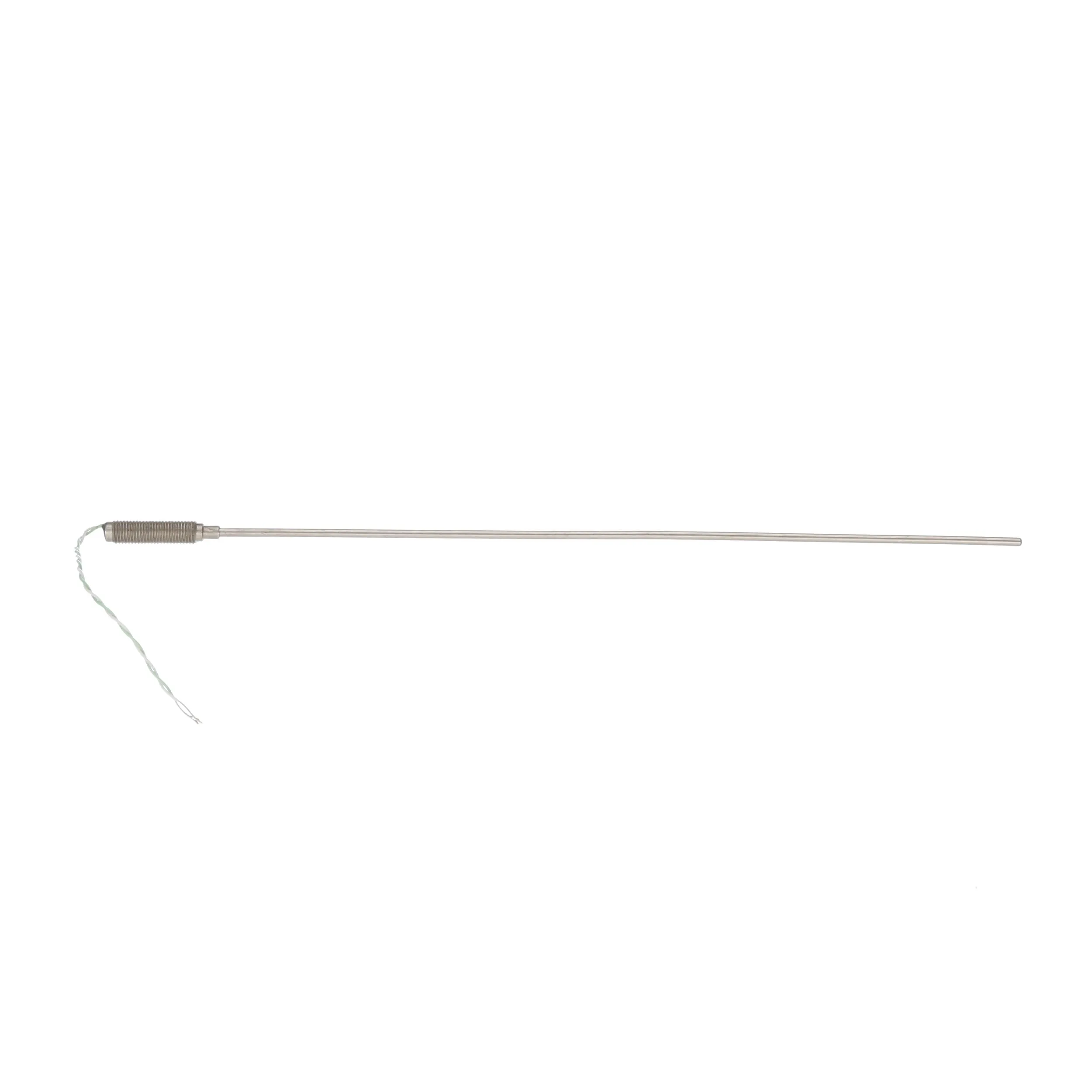

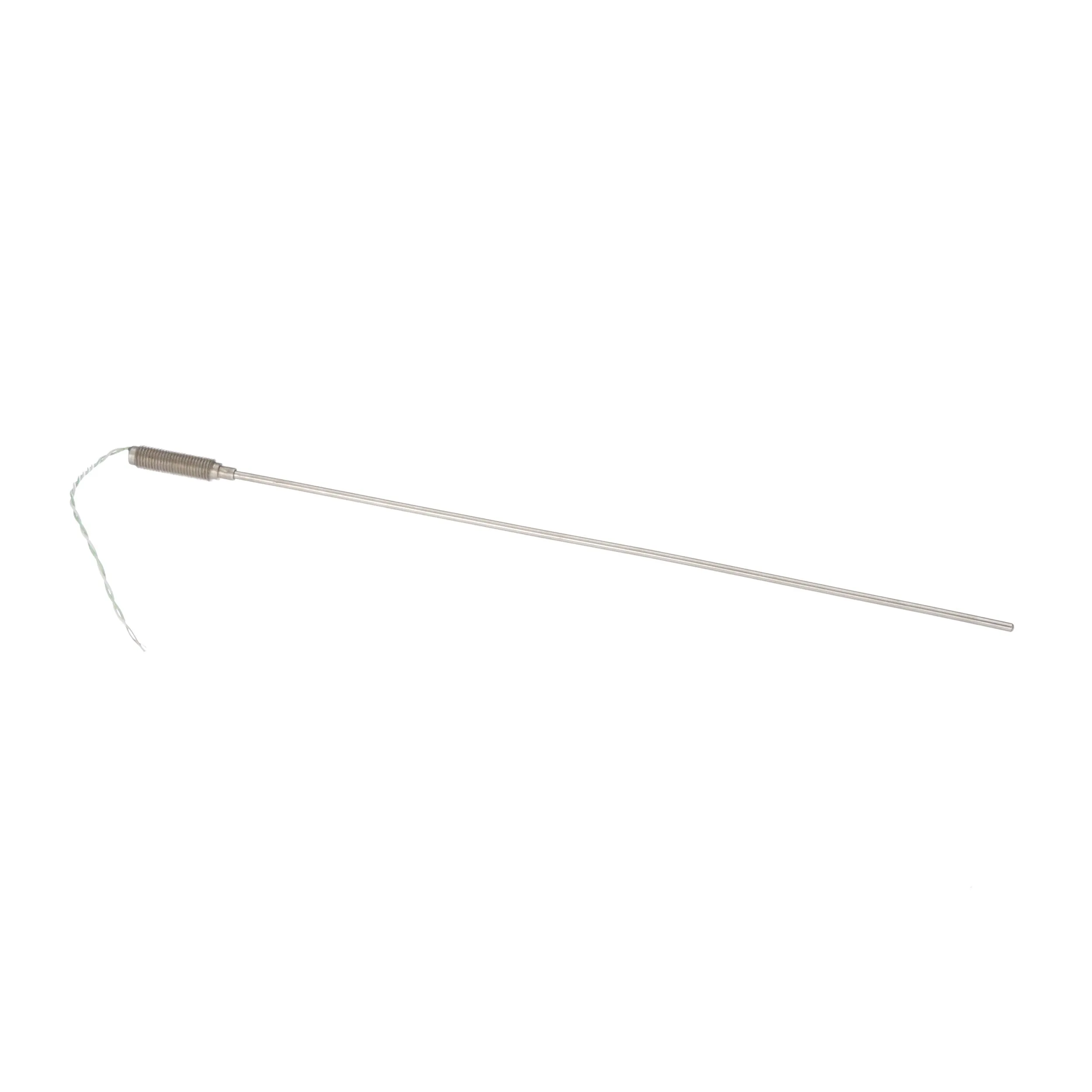

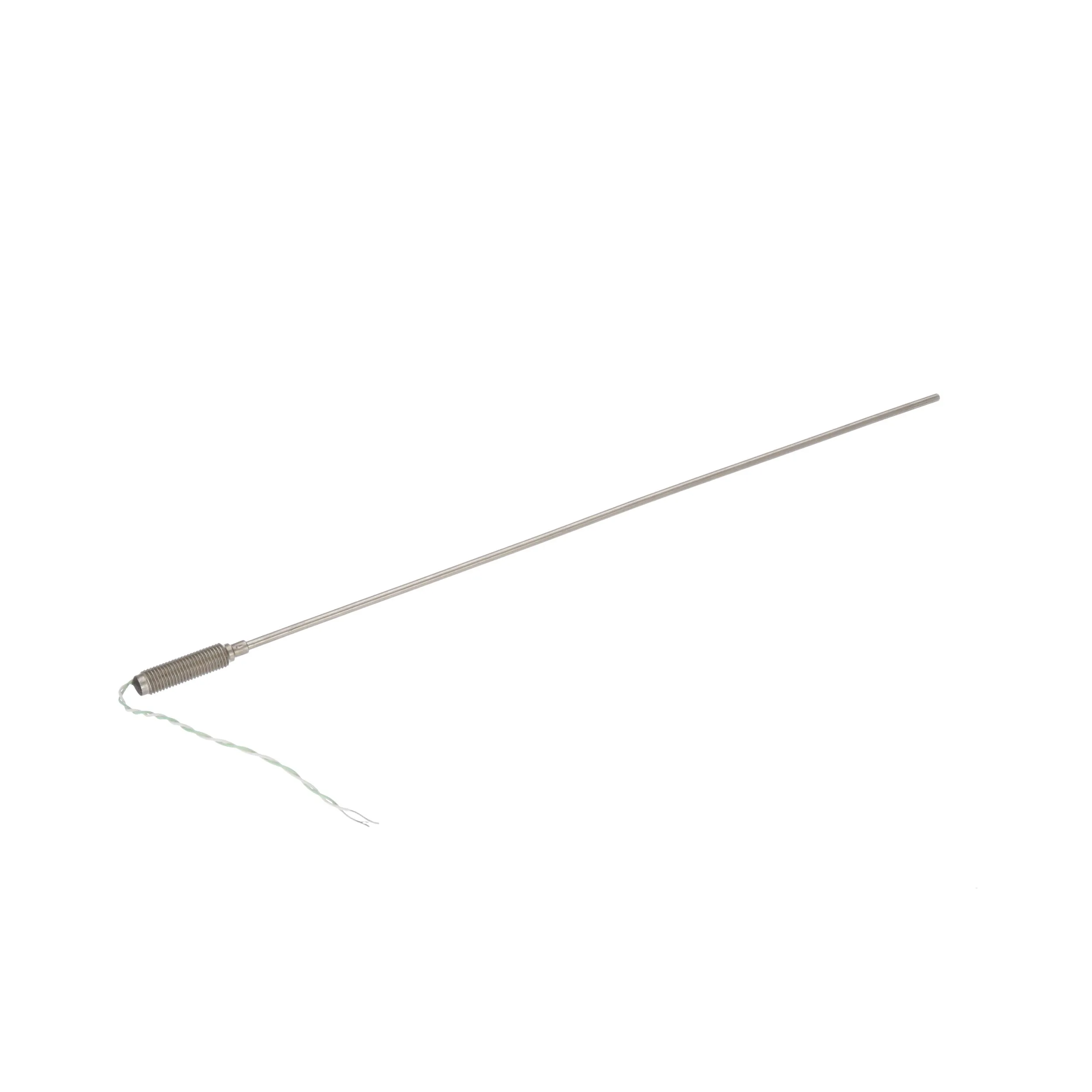

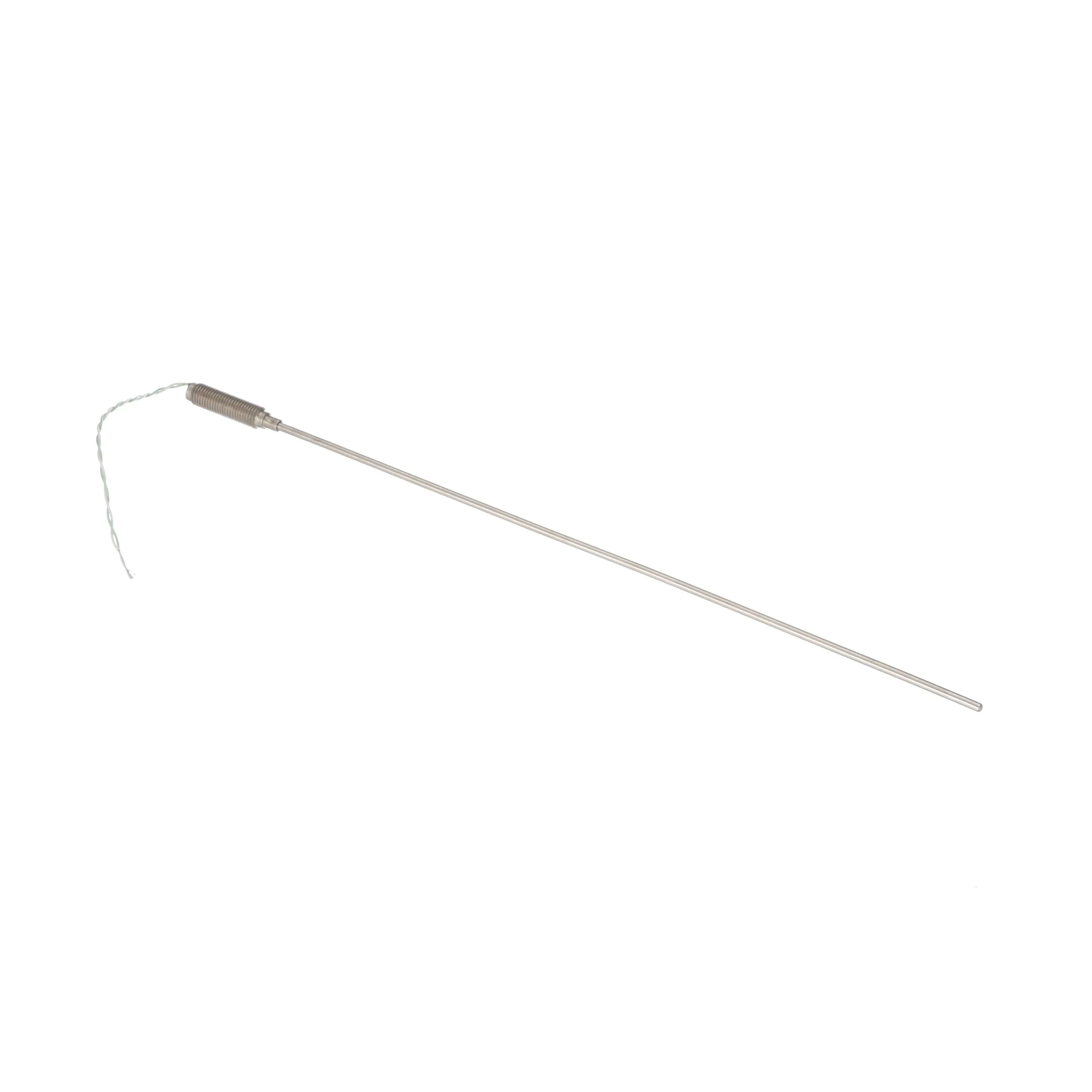

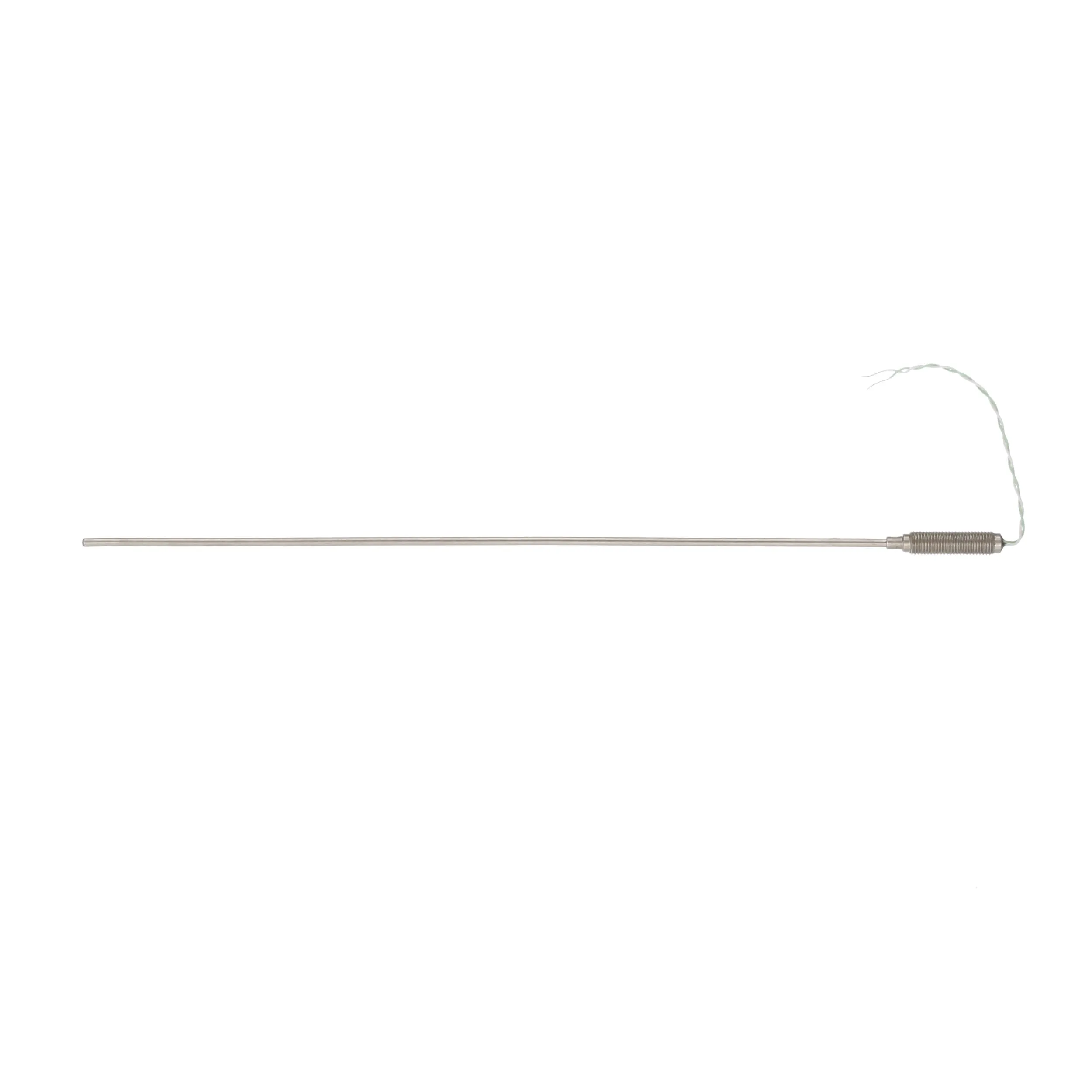

RS Pro – Type K Mineral Insulated Thermocouple Probe:
The best known and dominant thermocouple belonging to the group chromium-nickel Aluminum is type K. Its temperature range is extended (-200 up to 1100°C). Its e.m.f./ temperature curve is reasonably linear and its sensitivity is 41μV/°C.
150 and 250mm versions, particularly suitable for industrial use including, high pressure, high vacuum and high vibration applications.
Features:
