Name: RS Pro 159102
SKU: 1120790

Product Details ＋

Product Attribute	Attribute Value
Alternate Mfr Part Number	159102
Connection Type	Wire Leads
Insulation Color	Brown/Blue
Insulation Material	Flexible Mineral
Jacket Color	Red
Jacket Material	Inconel Alloy 600
Length, Wire	3.94 in (100mm)
Maximum Operating Temperature	2012 F (1100 C)
Minimum Operating Temperature	-40 F (-40 C)
Shop By	Factory Choice
Thermocouple Type	Type K
UPC Code	5056070948730
Warranty	3 Year Warranty
Wire Size	7/0.2 (0.219mm2)

Overview

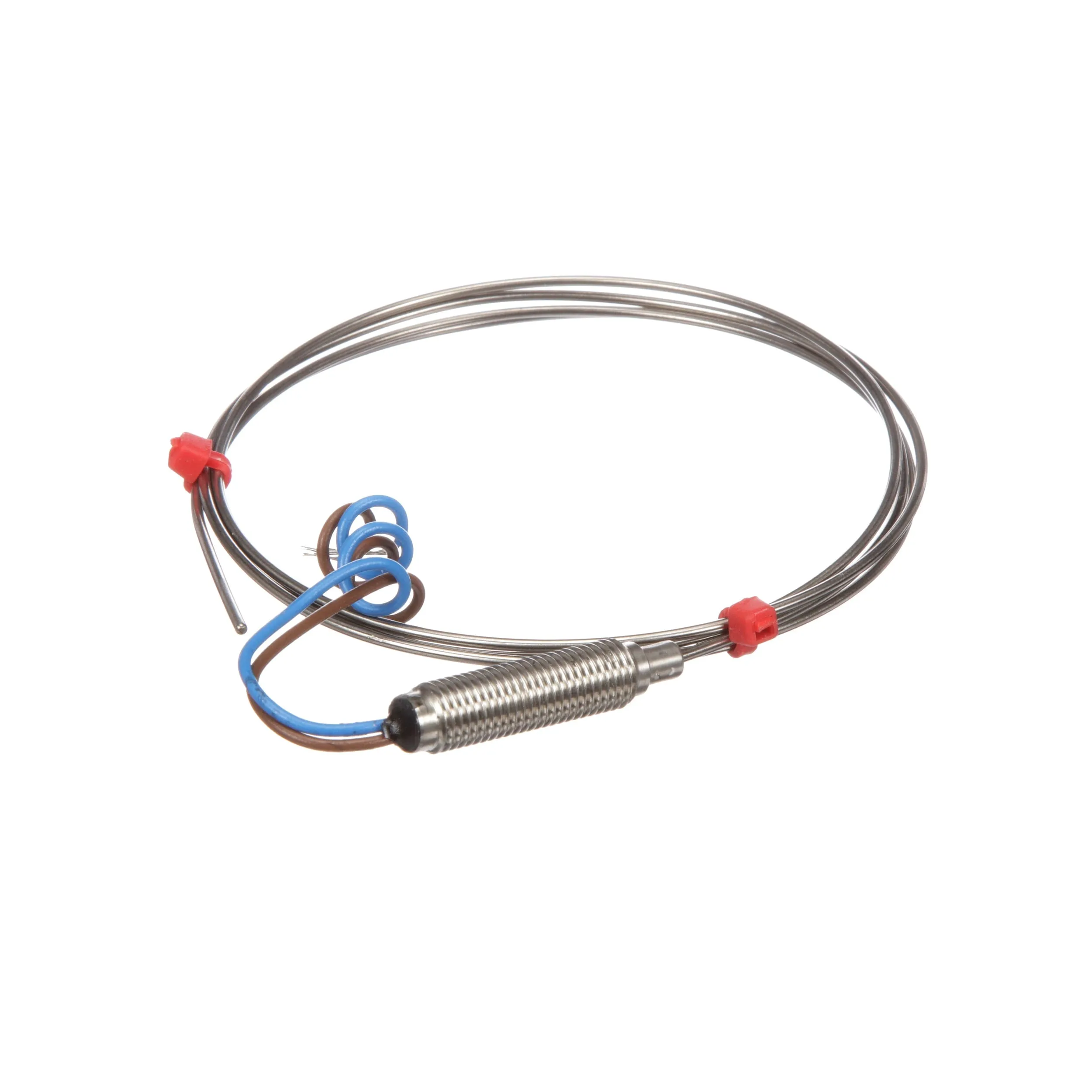

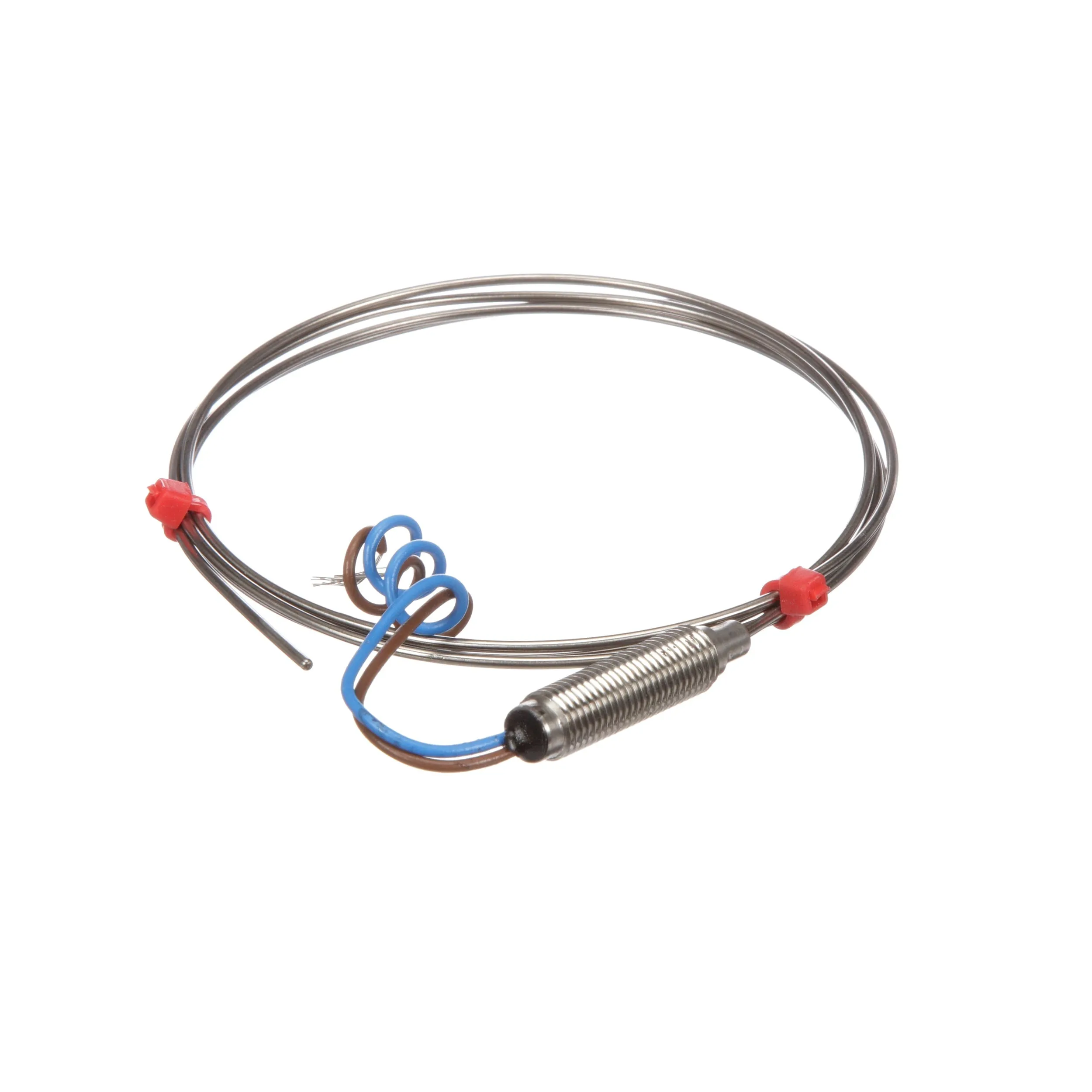

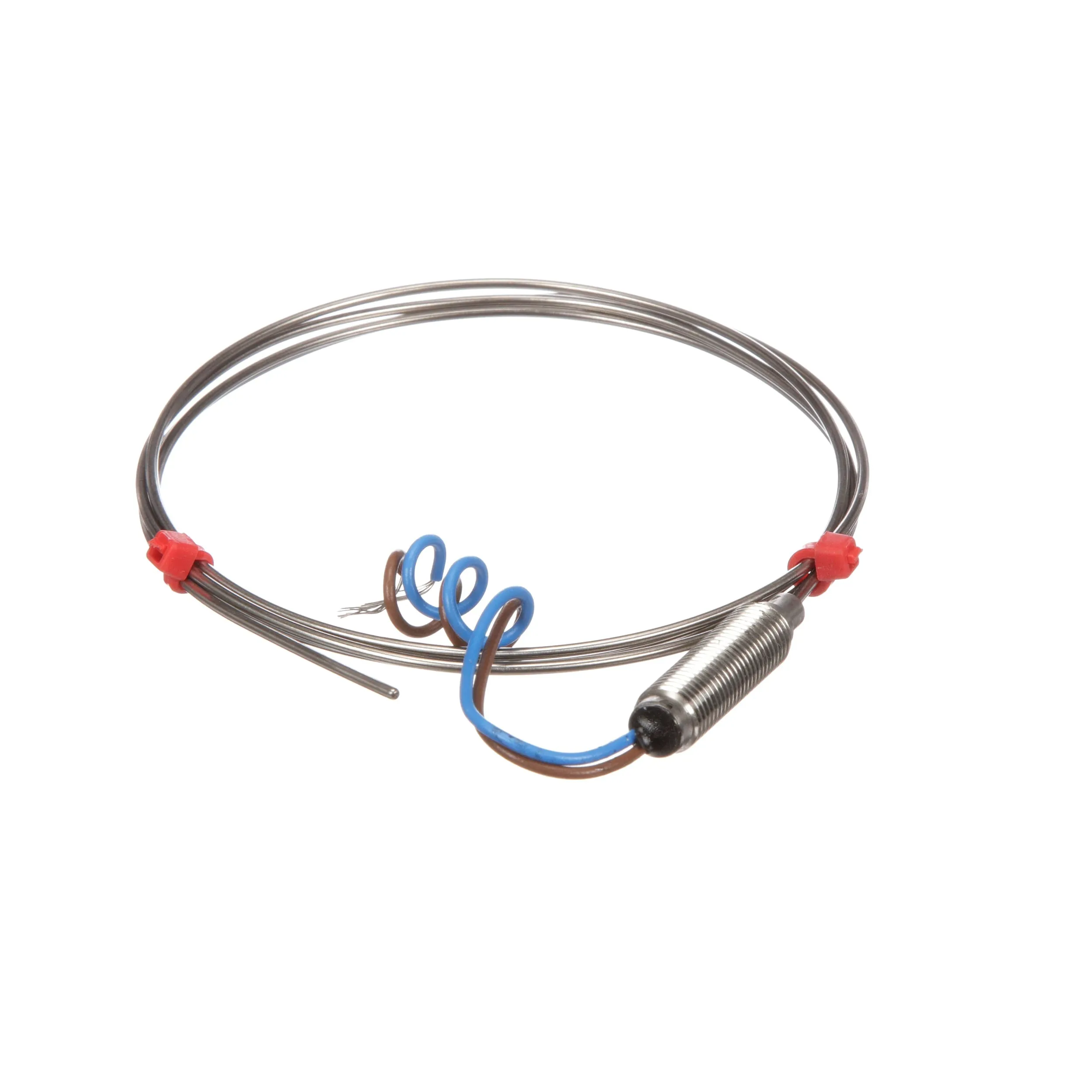

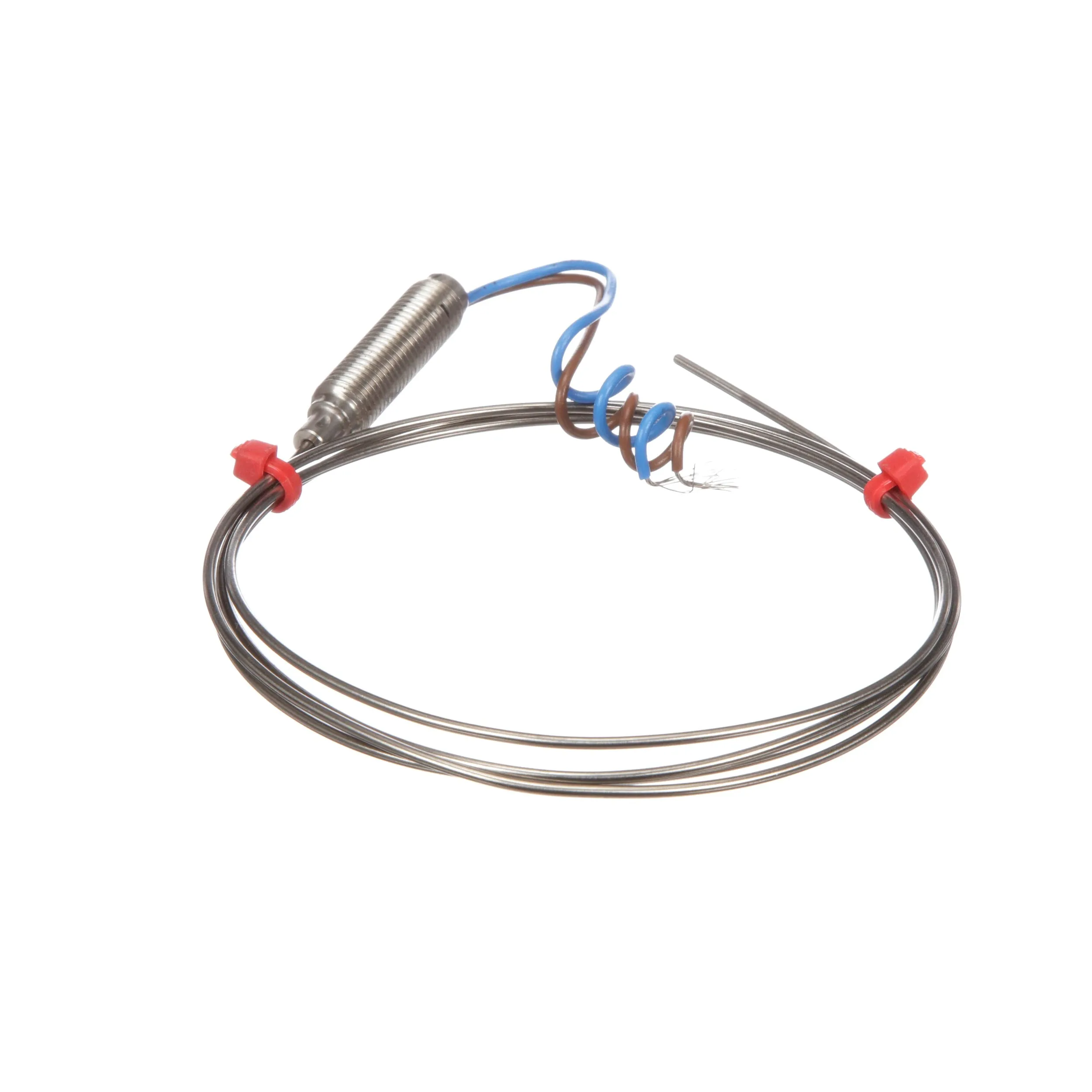

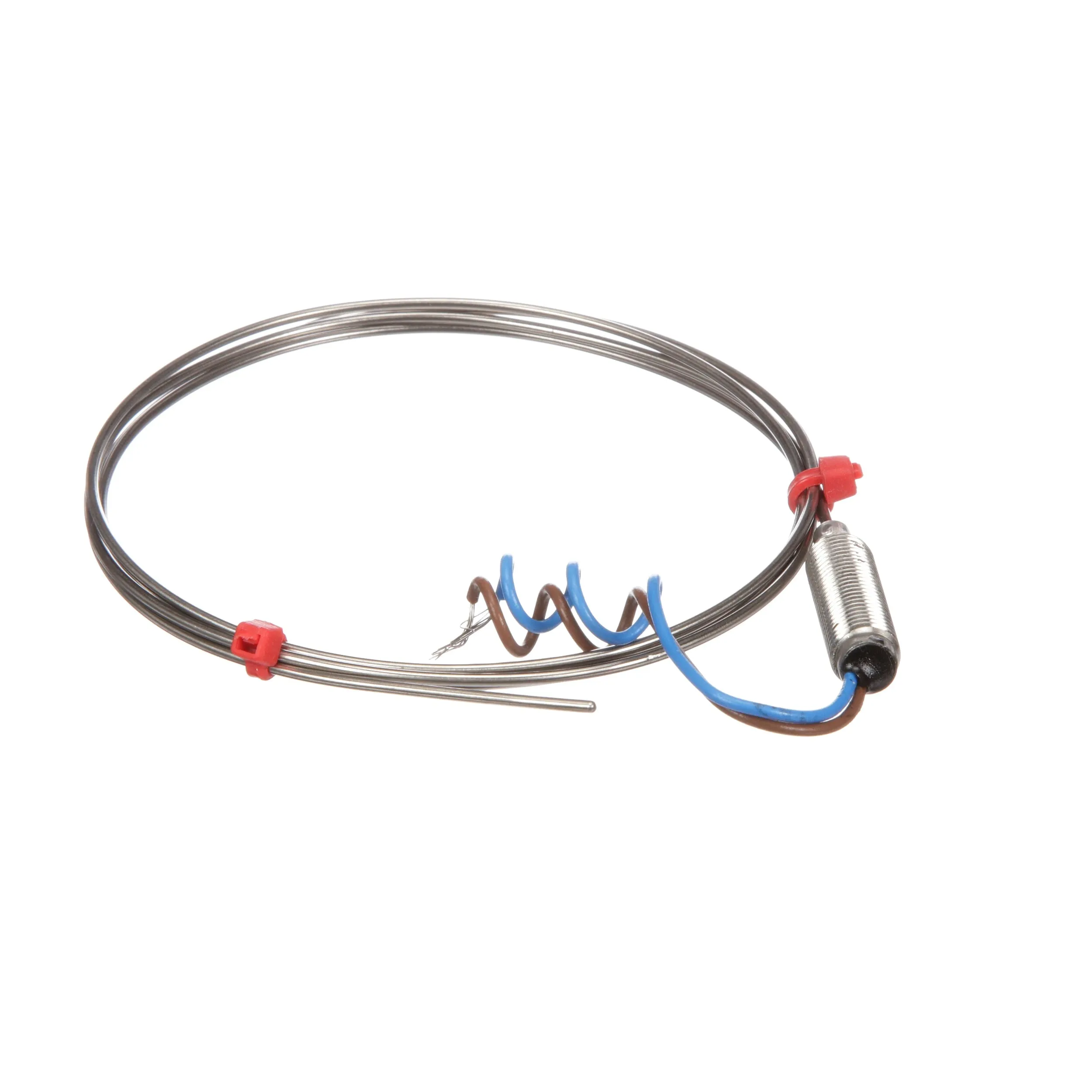

RS Pro – Type K Mineral Insulated Thermocouple Probe:

The best known and dominant thermocouple belonging to the group chromium-nickel Aluminum is type K. Its temperature range is extended (-200 up to 1100°C). Its e.m.f./ temperature curve is reasonably linear and its sensitivity is 41μV/°C.

150 and 250mm versions, particularly suitable for industrial use including, high pressure, high vacuum and high vibration applications.

Features:

Tip Junction insulated from the sheath.

Stainless steel (310)

Temperature range: Probe 0 to 1100°C. Pot seal 0 to 180°C

Bendable for fitting in difficult access locations

Bendable probes with a Stainless Steel 310 or Inconel 600 sheath. Inconel has excellent oxidation resistant properties

100mm of 7//0.2mm PTFE insulated cable
