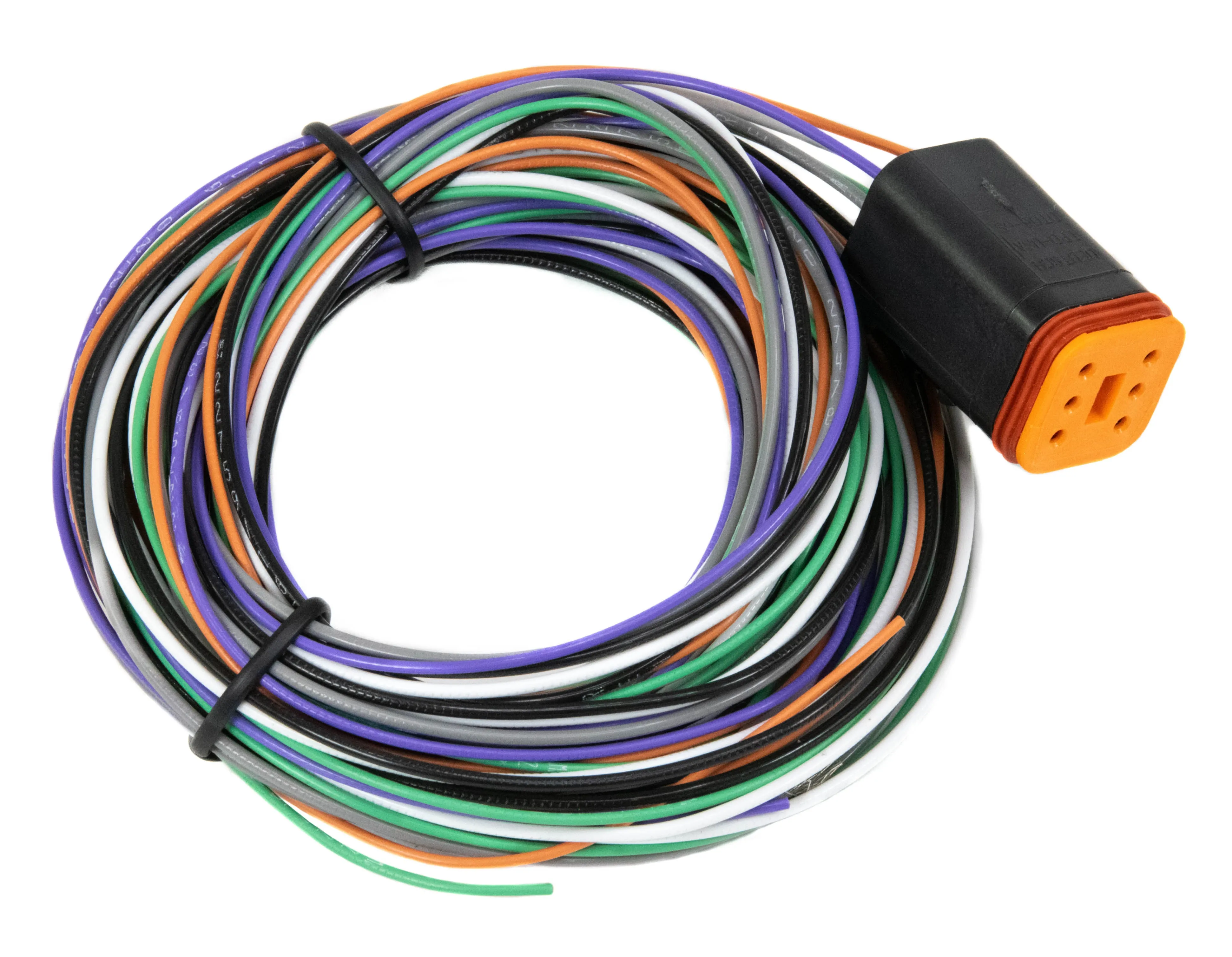

RIFE DT 6 Wire Tefzel Harness for Dual/Triple/Quad Pressure Sensors and DTM block

Rife Sensors’ Wiring Harnesses are pre-configured for easy hookup of your sensors.  Made in house of premium components, Rife’s harnesses are lightweight and durable.

Applications:

6 Pin Wire Harness – Dual, Triple, and Quad Remote Pressure Sensor Blocks

Undercar Sensor

Sensor Junction Box

Specifications:

• 6 tefzel wires
• Genuine Deutsch Sealed Connectors
• M22759/32 Mil-Spec Wire.
• Available as a 9 Foot length.

Wiring :

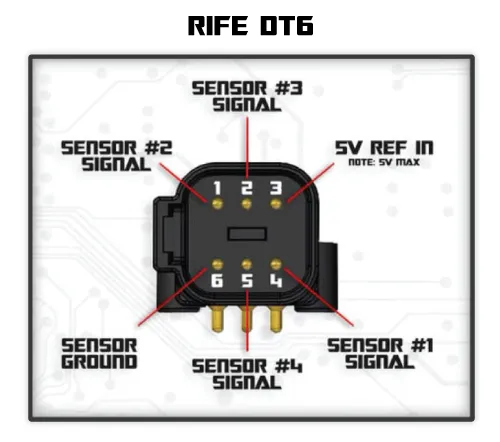

6 Pin Wire Harness:

Black – Ground

Orange – Power In (See sensor instructions)

Purple – Sensor 1 Signal

Green – Sensor 2 Signal

White – Sensor 3 Signal

Gray – Sensor 4 Signal

Learn proper wiring and crimp techniques
