Product Details
＋

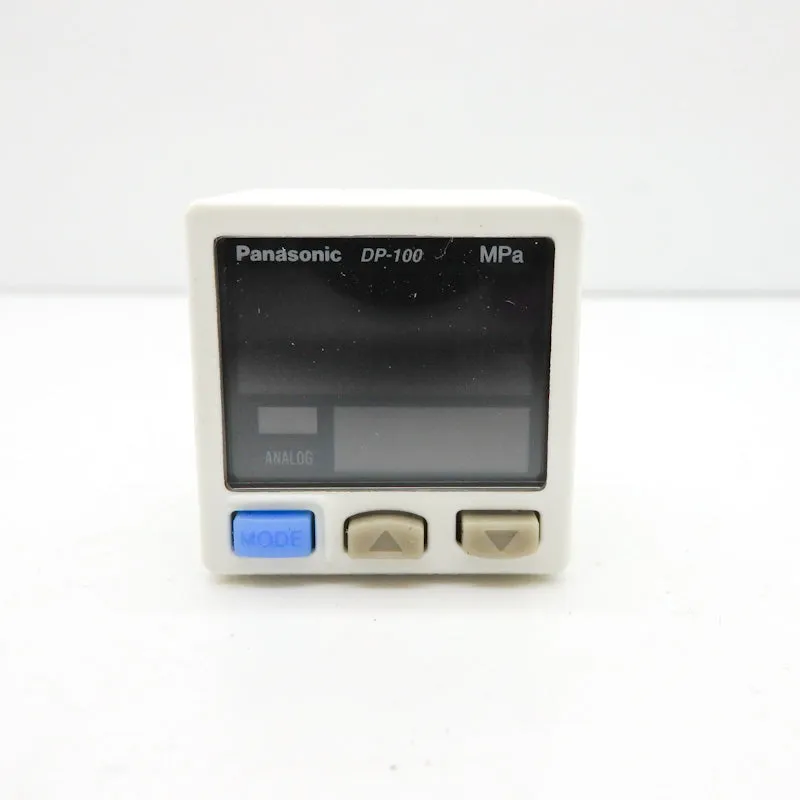

This is a Panasonic Dual 3 Color Digital Pressure Sensor. Its part number is DP-112A-E-P-J. This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: Panasonic
- Part Number: DP-112A-E-P-J
- Pressure Type: Vented Gauge
- Digital Display: Dual 4 digit 3-color LCD
- Operating Pressure: -14.5PSI ~ 145.04PSI (-100kPa ~ 1000kPa)
- Output Type: Analog Current/Voltage, PNP - Open Collector
- Voltage - Supply: 12V ~ 24V
- Port Size: Female - M5, Male - 1/8" (3.18mm) BSPP
- Port Style: Threaded
- Maximum Pressure: -21.76PSI ~ 217.56PSI (-150kPa ~ 1500kPa)
- Operating Temperature: -10°C ~ 50°C
