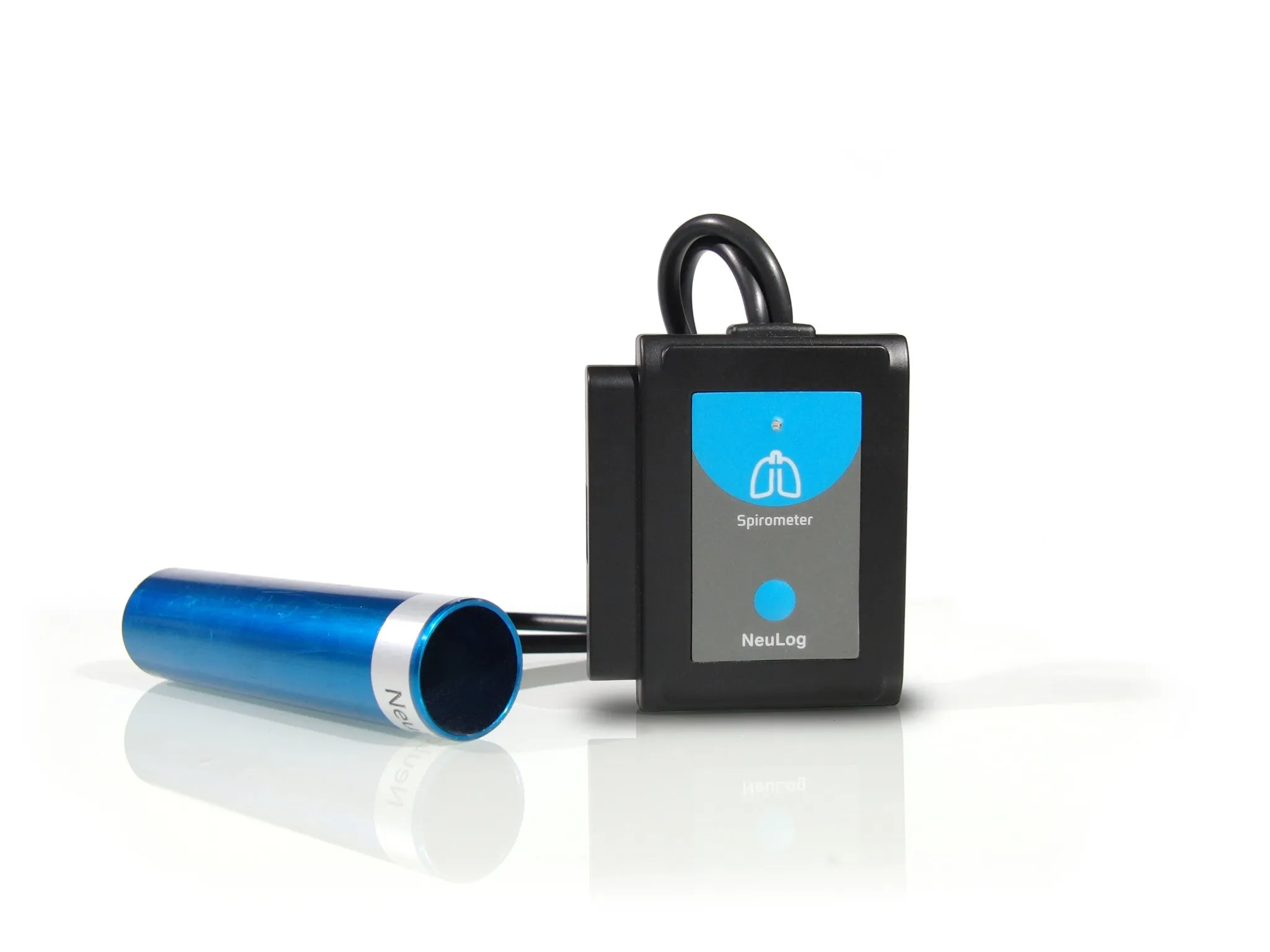

The Spirometer enables measuring the volume of our lungs. The sensor includes a tube and it measures the air flow that passes through it. The volume (in liters) is calculated by the software area calculation function.

The tube has a narrow part in its center and it measures the flow rate by measuring the pressure difference between the two ports of the tube.

*Requires connection hardware, sold separately.

Experiment Duration: 1 second to 31 days.

Note:
Disposable laminated papers are included with the sensor.
A paper must be rolled and put in the tube before using it and exhaling through it.


Operation Modes:
Range | ADC Resolution | Resolution | Max Sample Rate (S/sec):
/- 10 L/s, 10 bit, 0.05 L/s, 100
