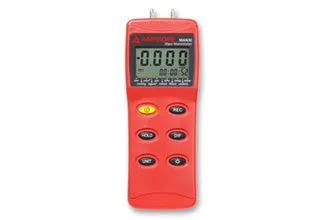

Product Details
＋
(item no. 3475009)
Product Overview
Hand held, accurate and featuring an internal time clock to capture events, these products are designed for HVAC/R technicians or other pneumatic control environment.
Features
- Measuring range up to 30 PSI (206.9 kPA)
- Necessary tool for gauge and differential pressure measurement
- Perfect for applications such as: valves, control sensors a pneumatic control environment, HVAC/R pressure levels and medical pressure systems
- 11 selectable units of measure: bar, mmHg, ozin2, kgcm2, psi, inH2O, kpa, ftH2O, inHg, cmH2O, mbar
- Maximum and minimum value recordings with time stamp help adjust and trouble shoot the pressure systems
- Data hold
- Large backlight LCD
- Auto power off function
- Built-in computer USB port for data downloads with optional PC cable and software
- Includes connection hoses
- Hard carrying case
- 1 X 9V alkaline battery (NE DA 1604A, IE C 6LR61) included
Specifications
| Feature | MAN02-A | MAN15 | MAN30 |
| Measuring range | 2 psi (13.8 kPA) | 15 psi (103.5 kPA) | 30 psi (206.9 kPA) |
| Accuracy | /- 0.3 % of full scale at /- 77 °F (25 °C) | Max 1 % full scale at /- 77 °F (25 °C) | Max 1 % full scale at /- 77 °F (25 °C) |
| Response time | 0.5 second | 0.5 second | 0.5 second |
| Sensitivity resolution | per 0.401 inH2O / 0.001 per 0.0145 psi / 0.1 per mbar | 0.01 psi / 0.1kPA / 0.5mmHg / 0.001 kg/cm2 | 0.01 psi / 0.1kPA / 0.5mmHg / 0.001 kg/cm2 |
Models and Accessories
| Model Name | Description | |
| MAN30 |
|
