Product Details
＋

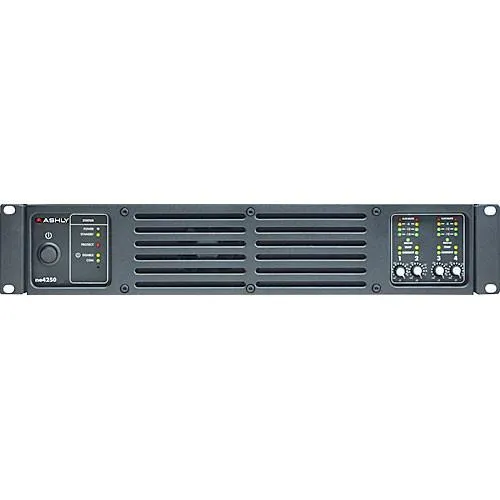

Ashly ne4250.70 overview
The ne4250.70pe Network Enabled Four-Channel Amplifier 250W @ 70V with DSP from Ashly will simplify your sound installation with its slew of features. This four-channel amplifier provides 250W per channel at 70V with euroblock inputs and outputs. Setup and control of this unit is simple with Ethernet connection and Protea NE software. Each channel has its own level attenuator and 4-step level and clip-LEDs. The ne4250.70pe has an integrated DSP signal processing library, which utilizes two SHARC 32-bit/96kHz processors. This library includes processing blocks for dynamics controls, gain functions, graphic and parametric EQ, crossover functions, delay, metering, and a signal generator.
- Use Protea NE software to control and setup via Ethernet connection
- DSP signal processor powered by two SHARC 32-bit/96kHz processors with blocks for Graphic, Parametric, Notch and Shelving Equalization, High-, Low- and All-Pass Filters (HPF/LPF/APF) with up to 48dB/Octave slopes, Delay, Compressor/Limiter, Gate, Ducking, Auto-leveler, plus Gain and Signal Generators (sinewave, white and pink noise).
- Euroblock connections for inputs and outputs
- The ne4250.70pe has multiple layers of protection circuits including over current, thermal and mains protection
-
Ashly ne4250.70 specs
Power Rating 250W per Channel Voltage 70V Damping Factor > 250 Input Sensitivity 6.2dBu Input Impedance 20k ohms, balanced Gain Not specified by the manufacturer Frequency Response 20Hz - 20KHz, (unweighted) ±dB Signal-to-Noise Ratio >98dB Total Harmonic Distortion (THD) Not specified by the manufacturer Input Connections Euroblock
EthernetOutput Connectors Euroblock Controls Front Panel AC Power Switch
Individual input attenuatorsControls (Rear) Ethernet 10/100
Remote standby
Preset recall (4)
Remote Level (4)
Remote DataIndicators Power (Blue)
Standby (Yellow)
Protect (Red)
Disable (Yellow)
Com (Green)
Bridge (Green)
Signal Level -18dB, -12dB (Green), -6dB (Yellow), Clip (Red), Temp (Yellow)Cooling Temperature dependent speed-controlled fan (Front in, Side out) Power Consumption 200W Power Requirements 120VAC Dimensions 3.5 x 19 x 15.5" (88.9 x 483 x 394mm) Weight 21 lbs (9.53kg) Specialties Control via Ethernet connection with Protea NE Software
DSP Signal Processor
