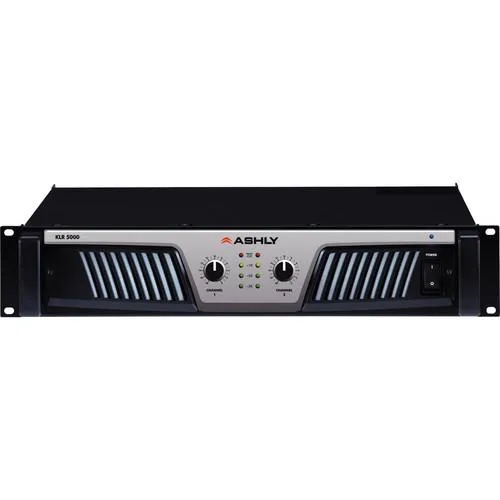

Ashly KLR-5000 overview
The KLR-5000 Two-Channel High Performance Amplifier from Ashly delivers a minimum power of 2500W per channel into 2 Ohm loads, 1700W RMS per channel into 4 Ohm loads, or 1000W RMS per channel into 8 Ohm loads with both channels operating. The KLR-5000 is optimized to deliver high levels of sustained power, extraordinary audio performance, and road-proven reliability into 2, 4, or 8 ohm loads and are housed in a uniform, rugged, 2RU chassis.
The output topography of the KLR-5000 is a two step class-H design. The protection circuits include output over current protection, DC output protection, chassis internal temperature monitoring, inrush limiting and a main circuit breaker.
The KLR-5000 incorporates the latest technologies delivering quality and value for professional performance at an extremely affordable price. Whether your application is professional audio or fixed performance installation, the KLR-5000 amplifier is optimized to provide reliable audio performance with sonic perfection.
- Balanced inputs via 3-pin Euroblock and combo XLR/ 1/4" TRS
- Switch mode power supply provides high efficiency and low weight
- Forced air cooled (front in, rear out)
- Removable dust filters
- Front mounted attenuators
- Front panel indicators for output level, clip/ protect, and power on/ off
- Gain selectable switch for both channels
- Rack ears for permanent installation in a standard 2RU enclosure
- Neutrik Speakon output connectors
- 3-position gain switch (1V, 32dB or 26dB sensitivity)
- 3-position mode switch (bridged, stereo or parallel mono)
- 3-position HPF switch (30Hz, 50Hz or off)
- On/ off limiter switch
- Permanently attached power cord
- Extensive protection circuitry
-
Ashly KLR-5000 specs
Power Rating 8Ω, 20Hz-20kHz, 1% THD: 1000W
4Ω, 20Hz-20kHz, 1% THD: 1700W
2Ω, 20Hz-20kHz, 1% THD: 2500W
Bridged mono mode:
4Ω, 20Hz-20kHz, 1% THD: 5000WCurrent Draw All channels driven @ 4Ω
Idle: 1.14A
1/8th power pink noise: 17.5A
1/3 power sine wave: 24.7A
S/N (20Hz-20kHz, unweighted): >110dBCircuit 2 step class H Online Thermal Dissipation All channels driven @ 4Ω
Idle (BTU/ hr): 215
1/8th power pink noise (BTU/ hr): 3111
1/3 power sine wave (BTU/ hr): 4395
Input gain switch: 1.4V, 26dB, 32dBFrequency Response 1W @ 8Ω 20Hz-20kHz (-3dB down point): 0.3dB 5Hz-70kHz Signal-to-Noise Ratio S/N (20Hz-20kHz, unweighted) Damping Factor 100Hz @ rated power @8Ω: >380 Total Harmonic Distortion (THD) 20Hz-20kHz: 10dB below rated output @ 4Ω Impedance 12 kΩ, balanced HPF 30Hz, 50Hz, off (12dB/ Oct) Protection Output over current, DC output, chassis temperature, mains breaker (KLR-5000 uses internal mains fuse) Cooling Variable speed fan, front-to-rear air flow Front Panel Protection/ clip, signal, power Attenuation Per channel, front panel Input Connections 3-pin Euroblock, XLR, ¼" TRS phone jack Output Connectors Each channel four pin Speakon type Power Requirements 3-prong NEMA 5-20 Temperature 14-104°F (-10-40°C) Humidity 0-90% Compliance cCSAus, FCC, CE, RoHS Dimensions 19 x 3.5 x 16" (482 x 88 x 407mm) Weight 28.2 lb. (12.8kg)
