HEIGHT EXPERT

• 500-watt drive motor, 2,200-watt lift motor.
• Safety guard gives the biggest safety concern that the power will be cut off if the gate is open when lifting to 20'' height.
• Dual foot pedals will detect if the operator has both feet properly positioned on the platform for safety aim.
• Hand sensors ensure the operator has both hands on the controls for normal travel and lift functions.
• Humanism design with flashing light.

SPEED CHART SHEET

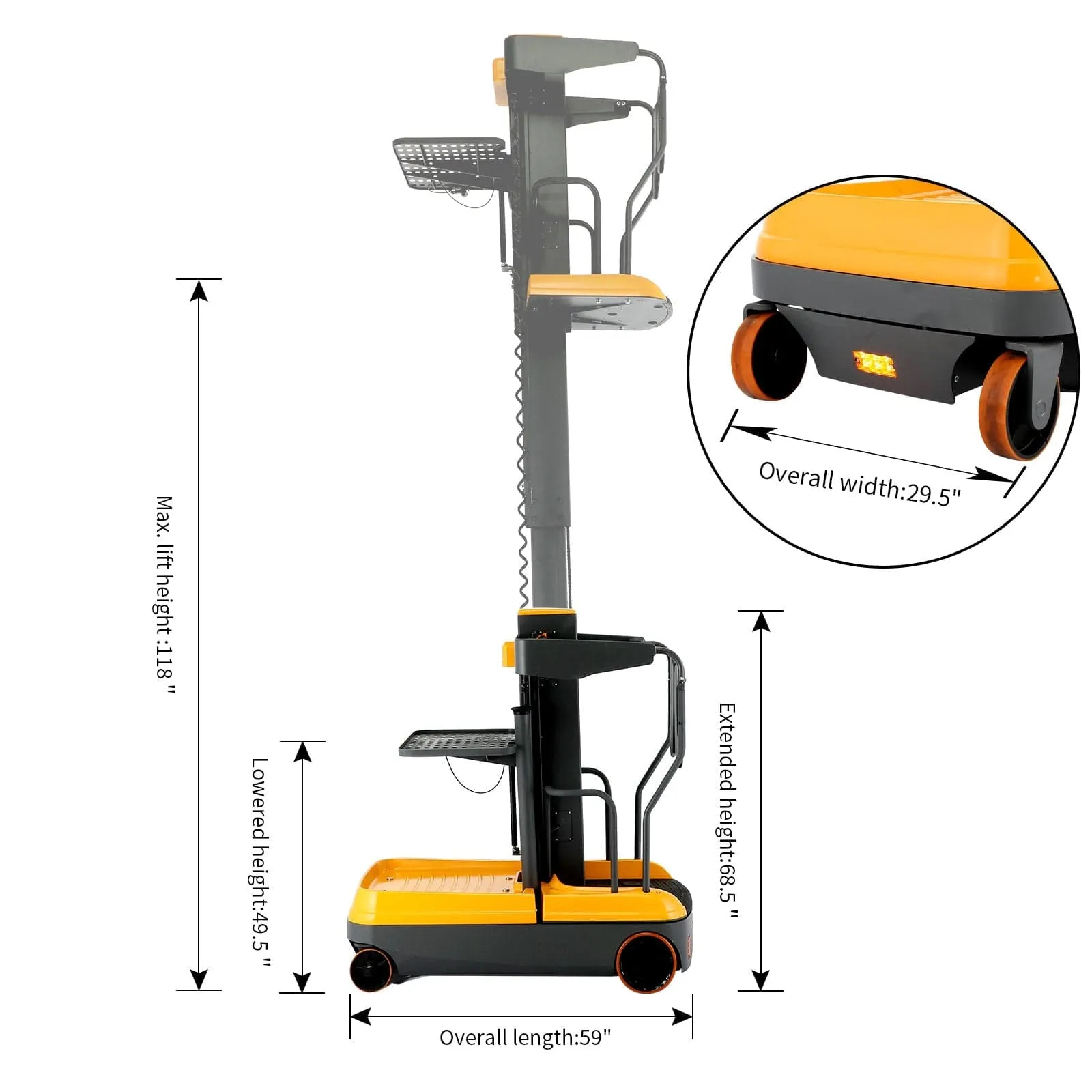

• Overall Length: 59"
• Overall width: 29.5''
• Recommended Aisle Width:68.9"
• Turning Radius : 51.2"

LOADING TRAY:

• Adjustable height:10.2''
• Size:27.5''x19.7''

FEATURES:

• A high-powered solution for facilities and outlets
• Idealy for handling high lift tasks, including stock picking, inspection, maintenance and installation.
• Smart for light maintenance applications or picking tasks without a pallet.
• 105 Ah rechargeable batteries free to maintian, built-in charger

SPECIFICATIONS:

• Not explosion proof.
• This truck is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
• Normal Ambient temperature shall not be higher than 104°F and no lower than -13°F.
• Fully charge battery before use to avoid damaging cells.
• Charger plugs into standard 110V-120V outlets.
• Charge the truck once a month even it's not in use.
